EXP 2: The Bridge

THE BRIDGE


THEORY:

The culmination of all transformative experiences derive from the journey involved.

CONCEPT:

Circulation within an educational space requires a collaboration between theoretical and practical learning.


Sketch Perspectives

1. Open 2. Permeable 3. Command 4. Protect 5. Bold 6. Unease (From top to bottom)






Textures


Scalar


Rotational


Linear

Wave
 Repetition
 Reflection

Draft Plan/Design Concept

Aim of design was to create a cohesive circulation path between important spaces within the school.

Consideration on the placement of spaces:

1. Studio + Workshop + Computer Lab (collaboration of spaces in terms of theoretical vs practical learning spaces)
2. Studio + Student Meeting Room
3. Staff Offices + Staff Meeting Room
4. Lecture Theatre + Library
5. Library + Computer Labs


Consideration of upcoming lightrail station on Anzac Parade


Original design

Entrances/Exits are located facing important areas of UNSW (lightrail station, roundhouse/squarehouse and gym).


Note: Alteration to Second Floor -- All three spaces are combined in the final design

Animated Axonometrics

Models: Sketchup & Lumion

https://www.dropbox.com/sh/jkj7iyku0sl26bx/AACoUJR1H3ZvbwdM8Ib2xLB2a?dl=0

Real-time Images


Computer Lab/Research Space




Textures Used (Note: Roof of Second Floor was designed using a texture)


Second Floor


 View from Different Perspectives

Moving Elements

1. Elevator - placement in heavily circulated areas (G - Lecture Theatre/F1 - Library/F2 - Computer Lab + Research Space

2. Extendable Gallery - intended to increase gallery space during large exhibitions


Elevator on Second Floor


Elevator on First Floor





 Extendable Gallery

Sunday, March 24, 2019

EXP 1: THE DATUM

Experiment One_Final Submission Links:






Lumion Hero and Detail Shots

     Hero Shot


Detail Shot


Ideas of minimalism and transparency were key in the design to retain focus on the workshop and its display of work. By using a limited selection of basic materials (stone, concrete and glass) was I able to accomplish my goal. Furthermore, the choice of glass is prominent in both workshops to create a relationship between both spaces and additionally bring natural sunlight inside the building aiming down on the workshops, showroom and creations. The showroom is below the Off-white workshop and extends outside to an area similar to a public space. To mirror AutoFabrica and Off-white's brand values of creation, the long distances required to travel from one workshop to another is an incorporation of a sense of journey and freedom.

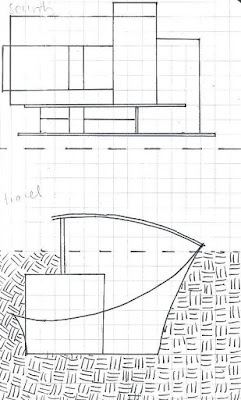

Section Sketch

The inspiration behind my model is based off this sketch. It has since changed because the upper workshop was too difficult to mould and combine my ideas together.



Three Words

Off-white: security, contain, vulnerable



BernabeiFreeman: illumination, spark, obtrusive



Auto Fabrica: creation, travel, sophisticated





18 Sketches


18 Sketches

Illumination/Obtrusive


Obtrusive/Illumination


Illumination/Contain


Vulnerable/Creation


Travel/Sophisticated


Security/Creation


Security/Travel


Security/Sophisticated


Obtrusive/Ignite


Security/Travel


Sophisticated/Security


Ignite/Vulnerable


Ignite/Obtrusive


Illumination/Contain


Creation/Vulnerable


Creation/Security


Travel/Security


Friday, March 22, 2019

36 Textures


36 Custom Textures


Textures 1 - 12: smoke, nature, system, mask, reflect, magical, crystal, solar, electricity, ooze, insulate, fire.




Textures 13 - 24: healing, dynamic, ghostly, conserve, absorb, frozen, power, spark, fragile, sustainable, escape, complex.




Textures 25 - 36: vanish, conceal, atom, space, connect, light, energy, scatter, charge, wave, radiate, efficient.




Textures in SketchUp Model
